TV Boards Recycling Line 1000 kg/h Printed Circuit Board Motherboard Recycling Machine

1000 kg/h Waste PCB Board Recycling Machine Printed Circuit Board Motherboard Recycling Line

Product Application

E-waste PCB Recycling Plant is used to recycle all kinds of Printed Circuit boards, such as the computer boards, cell phone boards, TV boards, copper-clad laminate, and other household appliances, and the separation of leftover material of the mixed metal and nonmetal materials.

Final Products

Because of the high value of the metals, fiber and resin, there is no doubt that this plant not only help to change waste into treasure, but also bring great economic benefits.Through years of practice and theoretical analysis, we obtain the best separation result, the separating purity can reach to 99%.

Technical Parameters

Model	Power (Kw)	Weight (Ton)	Capacity (Kg/H)	Dimension (m)
RSK-PCB300	102	15	200-300	2055
RSK-PCB500	134	20	400-500	2565
RSK-PCB800	194	30	600-800	3065
RSK-PCB1000	238	40	800-1000	3585

NOTE:

Working voltage:380±10V(415V ,440V also can be customized)

(If you want more detailed parameters and quotations, please contact us)

Product Structure

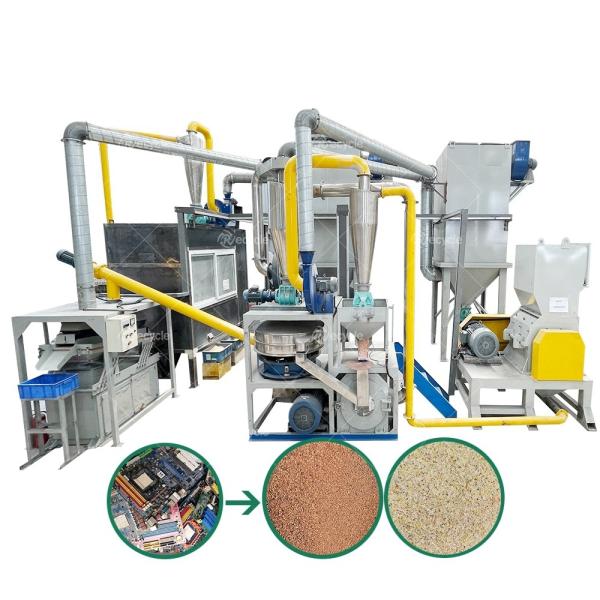

The E-Waste PCB Recycling Plant consists of shredding system, milling system, sorting system and dust collection system, the whole process is controlled by PLC.

Through shredding, grinding, vibration screening, (the incompletely separated metal and nonmetal will reentry into the grinding machine to be grinded again) gravity separating, electrostatic separating and pulse dust collecting, the metal and nonmetal will reach about 99% of separation, eventually get metal and non-metallic collective, and the valuable components after dismantling machine can also be recycled refined.

Process Description

The first crushing machine we choose the double shafts shredder, and the second crushing machine we use the hammer crusher, and the third crushing machine we use the high speed turbine grinding machine, the material after shredding, crushing and grinding will be separated by the air separator and the electrostatic separator.

It has the advantages of unique structure, large output and power saving. Several machines cooperation work after single loading of materials. Controlled by PLC This machine has good performance in copper recycling and comes with a device to prevent against secondary pollution The metal recycling rate is up to99% which is the only in china.

Product Features

1. Suitable structure and layout, stable performance and recycling water is used to control temperature and reduce noise in the grinder;

2. E-waste PCB Recycling Plant adopts PLC system, electrostatic separator makes higher and quicker separation, moreover gets more non-ferrous metal;

3. The negative pressure feeding system prevent the dust from running out, the separation rate of pulse dust cleaning device can reach 99%;

4. The separation rate of air separator can reach 97%, with the magnetic separator, the iron can be separated from other metals.

Related Configuration

Customer Site

Company Show

As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.

We can dispatch engineers to overseas to help you with installation, training if you need.

Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
