Eco Friendly Battery Scrap Recycle Plant for Lithium Ion Battery Recycling Production Line

Ask Lasest Price
Brand Name :	RECYCLE
Model Number :	RSK-LDC
Certification :	CE
Supply Ability :	20 Set/Sets per Month Waste Computer Phone Li Ion Mobile Battery Separating Plant
Price :	$240,000.00/sets >=1 sets

Add to Cart

Product Details
Company Profile

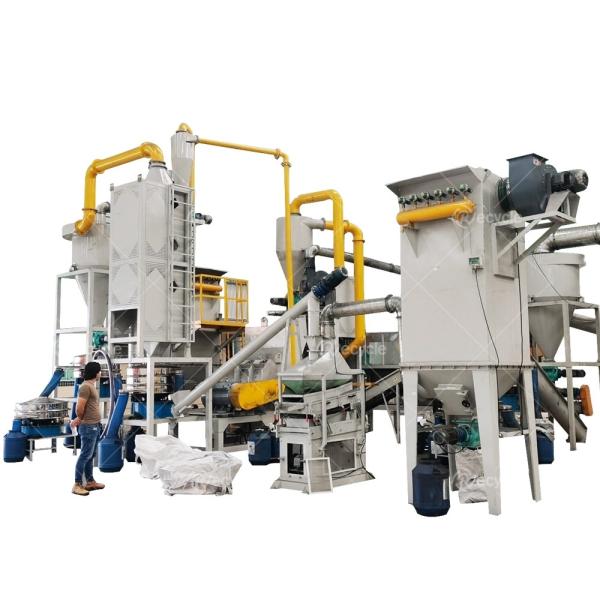

Eco Friendly Battery Scrap Recycle Plant for Lithium Ion Battery Recycling Production Line

300kg/h Eco Friendly Battery Scrap Recycle Plant Customized Voltage And Color For Lithium Ion Battery Recycling Production Line

BACKGROUND

Lithium battery mainly consists of shell, positive electrode, negative electrode, electrolyte anddiaphragm. The positive electrode is formed by coating lithium cobaltate powder on two sides ofan aluminum foil current collector through PVDF which plays a bonding role;The negative electrode structure is similar to the positive electrode and consists of carbon powder bonded toboth sides of the copper foil current collector.

At present, the research on the recycling of wastelithium batteries is mainly focused on the
recovery of high-value anode precious metals cobaltand lithium. Copper in the negative electrode of waste lithium battery (content up to 35%) is animportant production raw material widely used.Carbon powder adhered to it can be used asadditives such as plastics and rubber. Based on the structural characteristics of lithium batteries,our company adopts an environmentally-friendly physical
separation process to realize efficientseparation and recovery of waste lithium batteries.

Product Description

The pretreatment process of Lithium Batetry Recycling Plant mainly comprises the following steps: after discharging the recovered waste batteries, crushing, magnetic separation, air separation, crushing, gravity separation, screening and other processes are carried out by mechanical equipment.

RAW MATERIALS

The lithium battery recycling plant is used for dismantling and recycling the Soft package battery, cellphone battery,Shell battery,Cylindrical battery etc. Different types of lithium bat-teries have different recycling procedures. Please contact us for detailed configuration.

FINAL PRODUCTS

The final products of this plant is Graphite powder, Cobalt acid lithium,Aluminum and copper.

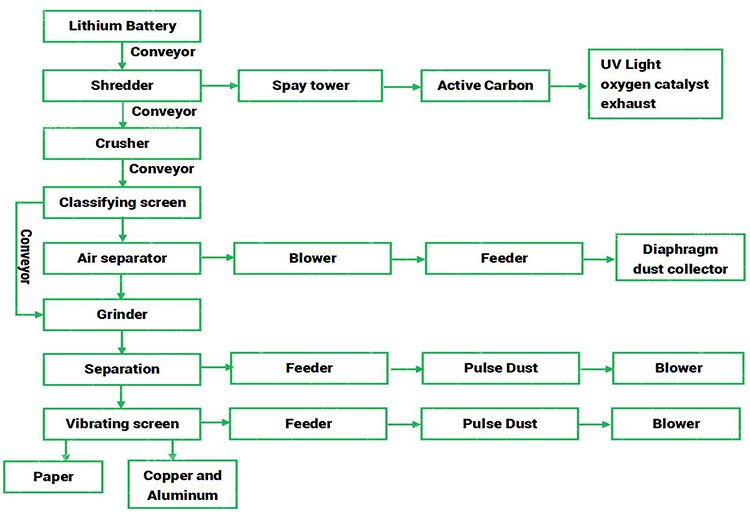

Technological Process

Shredder -- Hammer Crusher -- Grinder -- Separation Machine -- Collector--Pulse Purifier -- Classifying Screen -- Magnetic Machine --Gravity Separator -- High-pressure Blower

Shredder: Shredded lithium batteries into smaller pieces.

Hammer crusher: For the secondary crushing of shredded materials.
Grinder: For the grinding of the crushed materials.

Separation Machine: Separate the materials after being ground.
Collector: Collect and release the dust .

Pulse Purifier (Air Cleaner): Clean all the dust produced during the operation of the wholesystem.

Classifying Screen:Screen the materials sorted by the separation machine,and screen out oflarger metal materials.
Magnetic Machine: Separate nickel from the metals.

Gravity Separator:Separate those finer materials got from the screening machine and separatethe metal completely.

High-pressure blower: Keep the whole system in a negative state so as to collect the materialsand purity the air .

Environmentally Friendly Recycling Equipment

The air purification equipment of this production line has a very good performance.There are water spray facility and activated carbon device used to absorb odors andpulse dust collection system for dust adsorption.

Technical Parameters

Model	Capacity
LDC-300	200-300 Kg/H
LDC-500	500 Kg/H
LDC-800	800 Kg/H
LDC-1000	1T/H
LDC-1500	1.5T/H
LDC-2000	2T/H
WORKING PERFORMANCE
Raw Material	Lithium-ion Battery
Final Product	Mainly Copper, Aluminum, Lithium Cobalt Oxide, Graphite Powder

NOTE:

Working voltage:380±10V(415V ,440V also can be customized);
(If you want more detailed parameters and quotations, please contact us)

TECHNICAL STANDARDS

Feature Item	Indicator Requirments
Recovery Rate of Metallic Aluminum	>98%
Powder Recovery Rate	>98%
Content of Powder In Metal Aluminum	<2%
Content of Metallic Aluminum In Powder	<2%
Other	Contain dust collecter with not pollute
Qualified Rate	99%
Failure Rate	<1%
CMR	≥1.67

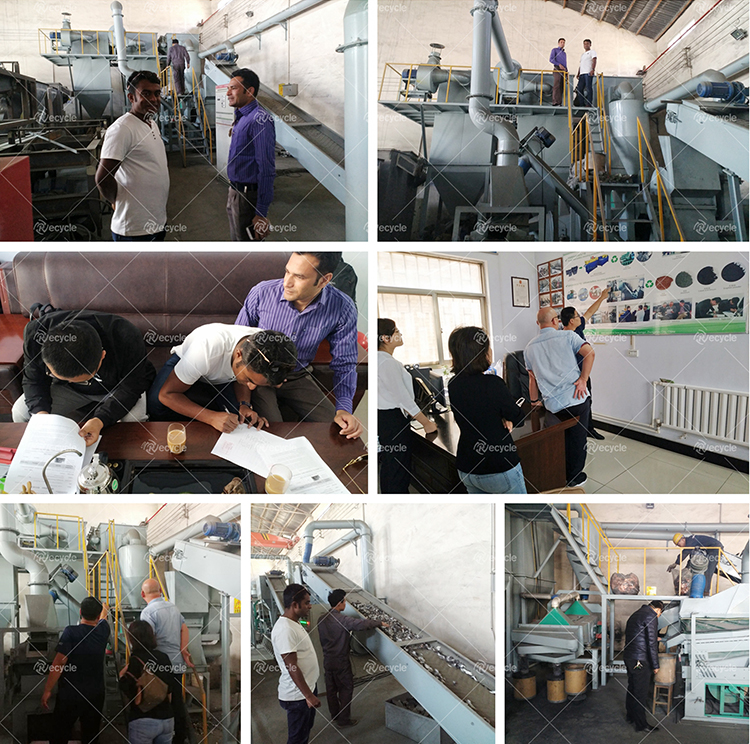

Customers Visiting

Equipment Worksite

Company Show

As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.

We can dispatch engineers to overseas to help you with installation, training if you need.

Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
